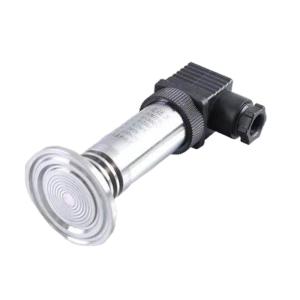

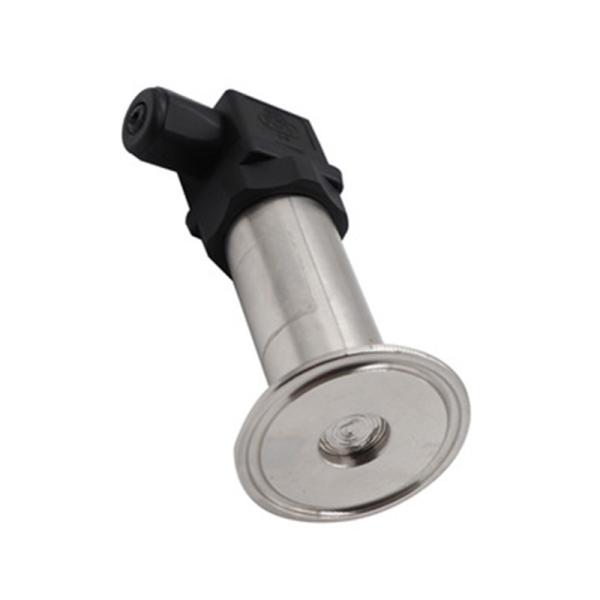

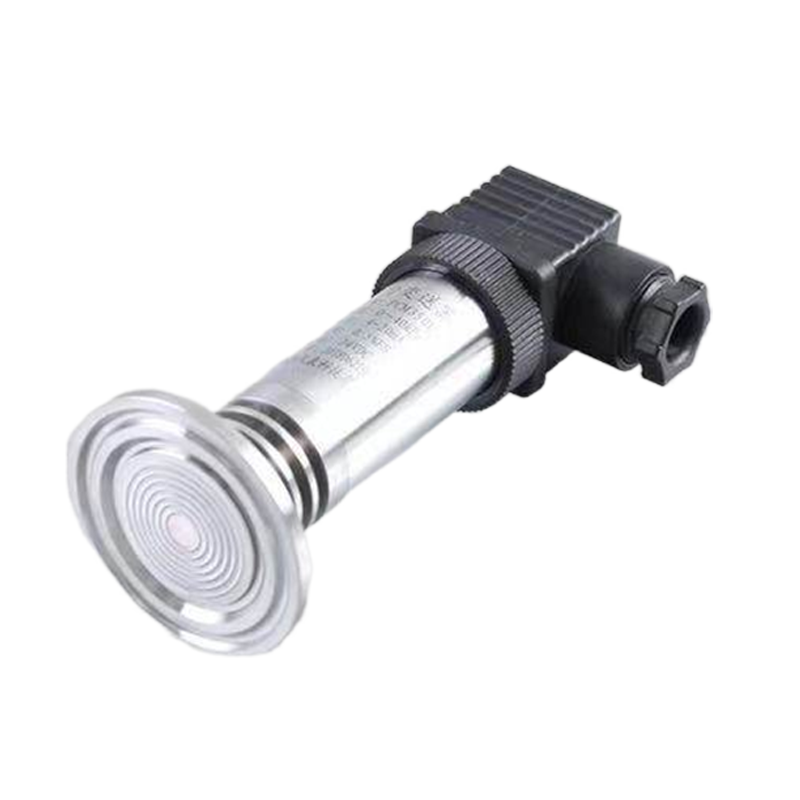

YW-130KF Stainless Steel Sanitary Flat Membrane Pressure Transmitter Pressure Sensor

The sanitary pressure transmitter adopts a clamp type flush membrane pressure sensor and an intelligent digital processing circuit to convert the front-end pressure signal into standard current, voltage or digital signal. The intelligent product can be directly connected to computers, secondary instruments, etc. for data remote transmission.

1. Sanitary grade design

Material safety: Adopting 316L stainless steel fully welded structure, the surface is polished to Ra<0.8 μ m, which meets hygiene standards such as FDA and EHEDG, and has no hygiene dead corners；

Easy to clean and disinfect: Supports CIP/SIP online cleaning and sterilization (high temperature resistance up to 150 ℃), clamps or threaded interfaces for quick disassembly；

2.High performance measurement

Flat membrane structure: Flat isolation membrane design, avoiding medium residue, suitable for viscous and easily crystallized media (such as slurry, food sauce)；

High precision: using imported silicon micro melting core or ceramic capacitive sensors, with an accuracy of ± 0.1% FS to ± 0.5% FS and long-term stability of ≤ 0.1% FS/year;

Wide range: covering -100kPa~60MPa, range ratio 100:1, response time ≤ 1ms；
