    4-20ma Smart RTD PT100 Thermocouple Temperature Transmitter HART

    Ask Lasest Price
    Price :
    Brand Name : XINYIYB
    Model Number : XYT130
    Payment Terms : L/C,D/A,D/P,T/T,Western Union
    Supply Ability : 100PCS/Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

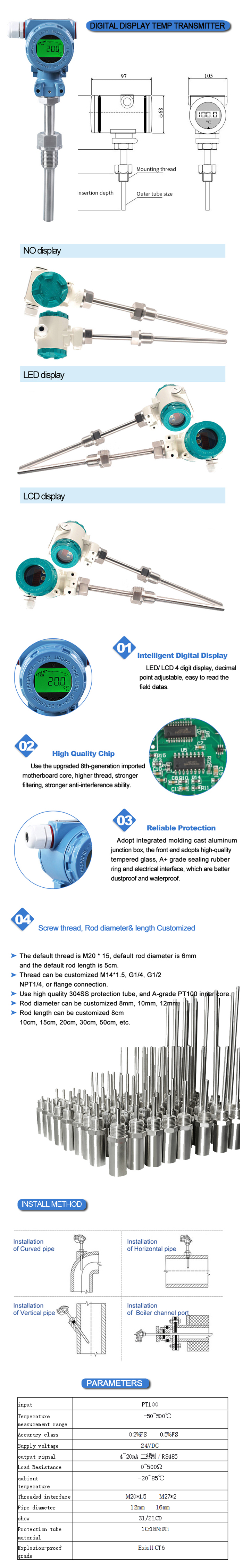

    4-20ma Smart RTD PT100 Thermocouple Temperature Transmitter HART

    4-20ma Smart RTD PT100 Thermocouple Temperature Transmitter HART

    The industrial digital integrated temperature transmitter converts the PT100 temperature sensor and signal to The amplification unit is organically integrated together to measure liquid and steam media in various industrial processes Or the temperature of the solid surface, and output a standard 4-20mA signal.This product has an industrial explosion-proof shell and an LCD display, which is convenient for on-site observation and has high accuracy Good stability, widely used in various industrial control fields such as petrochemical, textile, rubber, building materials, power, metallurgy, medicine, food, etc.


    Specification

    input

    PT100

    Temperature measurement range

    -50~500 ℃

    Accuracy class

    0.2%FS 0.5%FS

    Supply voltage

    24VDC

    output signal

    4~20mA two wires/ RS485

    Load Resistance

    0~500Ω

    ambient temperature

    -20~85℃

    Threaded interface

    M20*1.5 M27*2

    Pipe diameter

    12mm 16mm

    show

    31/2 LCD

    Protection tube material

    1Cr18Ni9Ti

    Explosion-proof grade

    Exia II CT6


    20250117160045_29779
