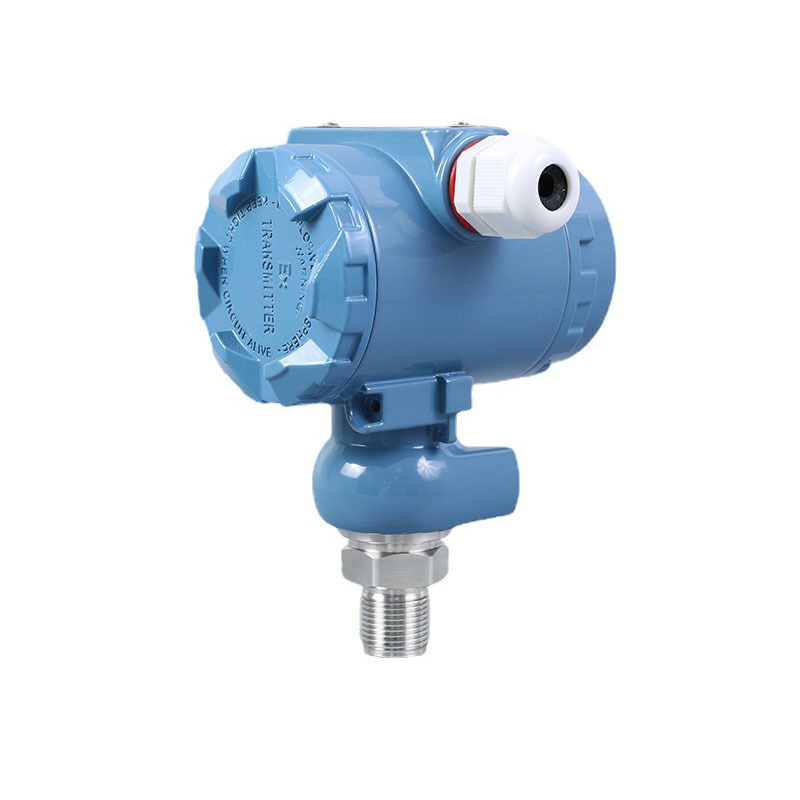

YW-140 Series Stainless Steel Piezoresistive Pressure Transmitter
The YW-140 series universal digital pressure transmitter uses SS insulated film silicon pressure sensor as the signal measurement element, and achieves zero point and temperature performance over a wide temperature range by using a dedicated IC circuit on the transmitter.
1.Range:-0.1MPa┅0MPa~0.01MPa┅100MPa
2. Display real-time pressure value with display screen
3. Easy todebug thezero and full scale
4. Reversepolarityprotectionandcurrentlimitingprotection
5. Anti-lightning,anti-pressure impact
6. High precision, highstability, high reliability
Power supply | 12~32VDC |
Output signal | 4mA~20mADC(2-wire) |
Load voltage | ≤(U-12)/0.02Ω |
Housing | Explosion-proof cast aluminum housing |
Sensor | Stainless steel316L |
Sealed-ring | Viton |
Media applicability | Fluid which has no corrosion to Stainless steel 316L and viton |
Compensation temperature | -10℃~80℃ |
Medium temperature | -30℃~80℃(LCD display:-20℃~80℃) |
Storage temperature | -40℃~125℃(LCD display:-20℃~80℃) |
![]() |
