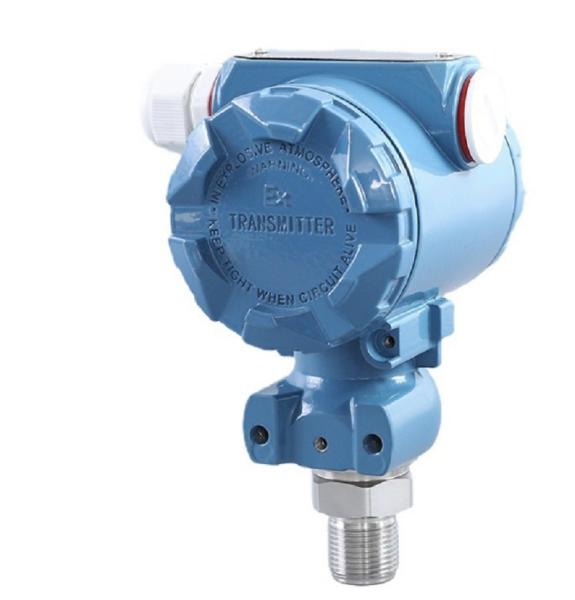

YB-2088 Stainless Steel Intelligent Pressure Transmitter Without Display

The YB-2088 pressure transmitter consists of an isolated OEM silicon piezoresistive element enclosed in a stainless steel housing. The aluminum alloy shell and stainless steel joint have high strength, good dielectric compatibility, stable and reliable performance, and high precision. The pressure interface is an industrial standard thread with a sealing gasket end face seal, suitable for various dynamic and static gas-liquid pressure measurements. This product is widely used for process control and measurement in industries such as petroleum, chemical, metallurgical, aviation, aerospace, medical equipment, vehicles, refrigerators, compressors, etc. The company can customize OEM according to customer requirements. We undertake products with special structural dimensions and high temperature resistance requirements, and have mature mass production lines that can complete production tasks in a timely and high-quality manner.

The pressure transmitter uses the HT series resistive silicone oil filled sensor as the signal measuring element. The signal processing circuit is located in a stainless steel casing and can convert sensor signals into standard output signals. All products have undergone component and semi-finished product testing, as well as finished product aging screening, ensuring stable and reliable performance. Has strong anti-interference performance and can work for a long time in harsh environmental conditions.

Compatible with 316LSS,noncorrosive gases & liquids;

Special use in harsh environment conditions;

Measurement Range	-0.1….0~0.01．．．~100MPa
Proof pressure	≤1.5X rated pressure or 110MPa which ever is less
Pressure type	Gauge, absolute ,sealed gauge
Accuracy	±0.25%(Typical) ±0.5%(Max.)
Long term stability	±0.2%F.S/year
Operating Temperature Range	-20℃~80℃
Storage Temperature Range	-40℃~120℃
Power supply	15～30VDC
Output signal	4～20mA 0～10/20mA 0/1～5VDC
Pressure port	M20×1.5 or customize
Diaphragm material	316L
O-ring	Fluororubber
Electrical housing	Cast aluminium alloy(2088housing)
Insulation resistance	100MΩ,100VDC
Protection	IP65
