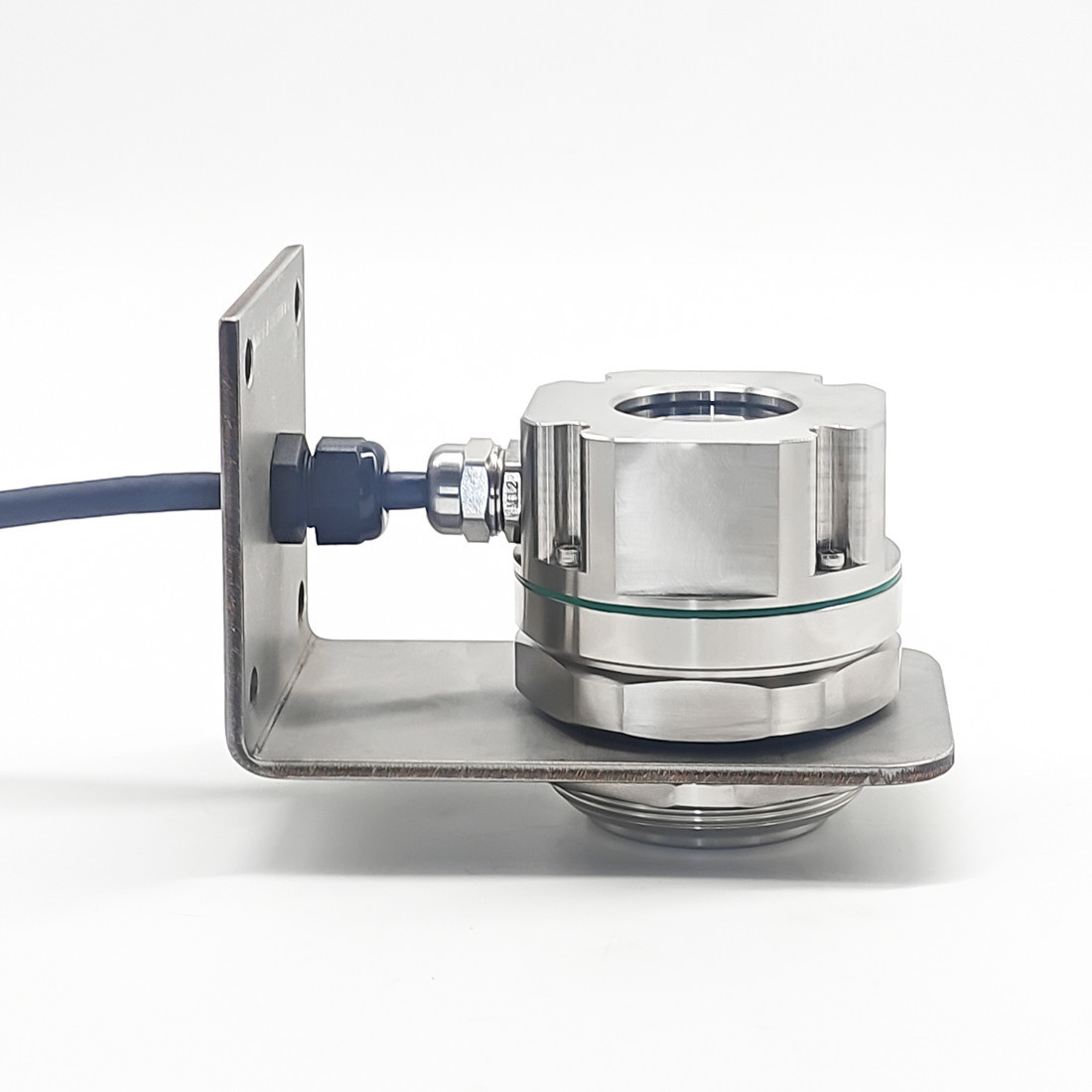

    Intelligent Radar Level Meter Digital Display Radar Water Level Gauge For Level Measurement

    Ask Lasest Price
    Price :
    Brand Name : XINYI
    Model Number : XYRT-102
    Payment Terms : L/C,D/A,D/P,T/T,Western Union
    Supply Ability : 100 PCS/month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Intelligent Radar Level Meter Digital Display Radar Water Level Gauge For Level Measurement

    Intelligent Radar Level Meter Digital Display Radar Water Level Gauge for Level Measurement


    The measurement range of the FM continuous wave radar level gauge is 7.5 meters, 15 meters, and 30 meters, which is suitable for measuring most small and medium-sized storage tanks and inspection wells. The RS485 Modbus interface of the device is the output of a standard level gauge, and users do not need to change the code of the acquisition device. It has high cost-effectiveness and effectively reduces the solution cost for integrators.


    1. There are no obstacles between the lower edge of the antenna and the measured medium, ensuring that the distance to the side is greater than 200mm;
    2. The lowest level should not exceed the range of the equipment, and the highest level should not enter the measurement blind zone;
    3. The terahertz RF beam angle is very small, and it is necessary to ensure that the beam is perpendicular to the surface of the measured medium and fixed reliably;
    4. The installation height must match the effective measurement range;
    5. The power supply needs to be stable and reliable;
    6.When the RS485 power cable is long, it is necessary to ensure proper shielding and grounding;
    Reading accuracy1mm/0.01mm
    Measurement accuracy±5mm
    Read Time6s
    Microwave frequency122GHz
    Beam angleLess than 4 °
    Measurement Interval≥400ms
    Digital OutputRS485 MODBUS
    Interface parameters115200(can set),N81
    Supply VoltageDC8V—DC30V
    Working current120mA@DC 12V
    Connectionfour-wire system
    Process temperature-25℃—65℃
    Process pressure1.0MPa
    Shell material316L
