100Bar High Precision Digital Differential Pressure Gauge 100mm

Ask Lasest Price
Price :	Discuss
Payment Terms :	D/A,L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability :	1000pcs/month
Delivery Time :	6-10 work days

Add to Cart

Product Details
Company Profile

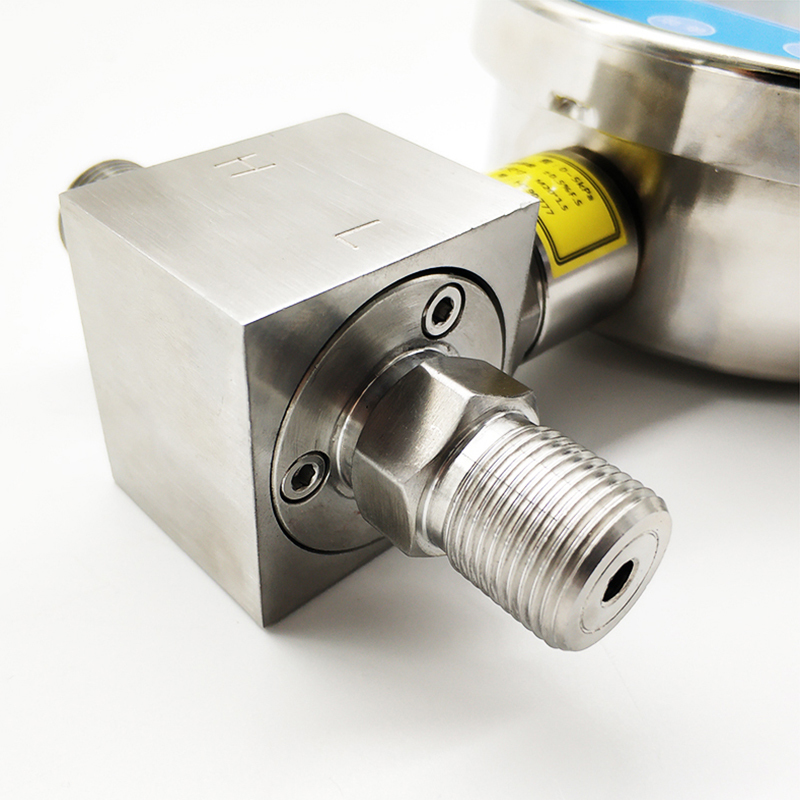

100Bar High Precision Digital Differential Pressure Gauge 100mm

Product overview

This gauge is a high-precision and intelligent digital pressure gauge. It has a high-precision sensor and displays the pressure accurately in real time, equipped with a large size LCD. It has a various of features, such as zero clearing, backlight, on/off button, units, low voltage alarm. And it is convenient to install and easy to operate. This gauge can be used as peak record to record the maximum and minimum.
The surface and connector of the product is 304SS. It can be used to measure gas, liquid, oil and other non-corrosive mediums of stainless steel. It applies to these fields: portable pressure measurement, equipment supporting, and equipment calibrations.

Product Features:

● Touch the key, and with the key tone, effectively improve the use of keys.

● 4000mAh lithium battery power supply (ER18505H), low power consumption design.

● Battery replaceable design, convenient for customers to replace the battery.

● Wide temperature compensation, suitable for all kinds of harsh environments.

● Peak record, unit conversion and other functions are complete, easy to use.

● Users can set the collection rate, automatic shutdown time, key lock time, backlight automatic shutdown time and other parameters according to their habits.

●11 pressure unit conversion, and can be set to convert the unit, close the unit not used.

● Added restore factory Settings function. In the process of operation, if the user misoperates, such as under pressure, mistakenly reset, enter the setting interface, etc. This function can be used to restore the pressure gauge to the data and Settings of factory calibration.

● Lock keys have been added to prevent touching other keys. In use, you can press the lock button, a lock pattern will appear on the display screen, lock other touch keys, and will not affect the press and use. After use, you can unlock and shut down.

Performance parameters
Range	Micro pressure: (6...10...25)kPa Medium Voltage: (0.4...0.6...4)MPa High Pressure: (6...10...25)MPa Ultra High Pressure: (40...60...160)MPa Compound Range: (-5~5...10...-100~1000)kPa Absolute Pressure: (0~100...250...1000)kPa Differential Pressure:(0~10...25...40...60...100...250...400...600)kPa (0~1...1.6)MPa
Overload Capacity	150%
Backlight Color	White
Dial Size	100mm
Accuracy	0.2%FS;0.4%FS
Long-term Stability	Typical: ±0.2%FS/year
Operating Temperature	-5~40℃
Compensation Temperature	0~40℃
Electric Protection	EN 61326
Sampling Frequency	3 Times/sec
Measurement Medium	Gas, water, oil
Connection	M20*1.5 G1/4 G1/2 or 1/4NPT 1/2NPT(customized)
Connection Material	304SS
Shell Material	304SS
Function	On/off, zero clearing, units changing, backlight, calibration
IP rating	IP55(IP54with protection sleeve)

Other data

Display: SFTN LCD, white backlight, 5 digit digital display. Power supply mode: 3.6V non-rechargeable lithium battery (ER18505H); It can be connected to external AC220V adapter for power supply; 24V external power supply; Other indicators: External dimension: 100mmx49mm, total length: 168mm Weight: 1kg Pressure connector: 1, 6 Flexible hose quick plug;
