YW-100A SS316 Diaphragm Pressure Gauge With 4-20ma Output 1kg

Ask Lasest Price
Price :	Diacuss
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :	1000pcs/month
Delivery Time :	6-10work days

Add to Cart

Product Details
Company Profile

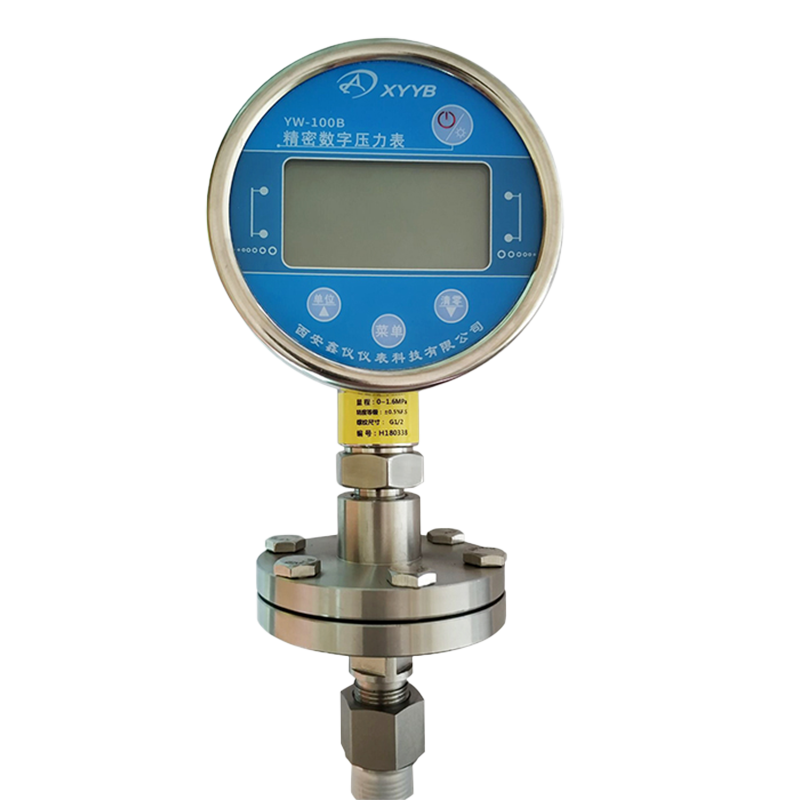

YW-100A SS316 Diaphragm Pressure Gauge With 4-20ma Output 1kg

YW-100A Diaphragm Digital Pressure Gauge With 4-20 MA Output

Diaphragm digital pressure gauges are mainly used in processes such as petrochemicals, alkali production, chemical fibers, pharmaceuticals, and food. They consist of a universal pressure gauge, connecting body, and diaphragm isolator. Used when measuring media with strong corrosion, high temperature, high viscosity, easy crystallization, easy solidification, and solid floating particles. It is mainly used in petrochemical, alkali production, chemical fiber, pharmaceutical, food and other process flows. It consists of a universal pressure gauge, connecting body and diaphragm isolator. Used when measuring media with strong corrosion, high temperature, high viscosity, easy crystallization, easy solidification, and solid floating particles.

item	value
Type	Diaphragm digital pressure gauge
Place of Origin	China
	Shaanxi
Warranty	1 Year
Customized support	OEM, ODM, OBM
Brand Name	XINYI
Model Number	YW-100A
Material	SS316
Size	100mm
Weight	1kg
Product Name	Storage type digital pressure gauge
Model	YW-100B
Display	5-digit LCD
Range	0~100 mpa
Pressure connection	M20 * 1.5 external thread
Ambient temperature	-10~50℃
Storage temperature	-20~70 ℃
Relative humidity	< 95%
Atmospheric pressure	86~106 kPa

Characteristic

●Touch buttons with button sound, effectively improving button usage. ●Powered by a 4000mAh lithium battery (ER18505H), with a low-power design. ●The battery is designed to be replaceable, making it convenient for customers to replace the battery themselves.. ●Wide temperature compensation, suitable for various harsh environments. ●The peak recording and unit conversion functions are complete and easy to use. ●Users can set parameters such as collection rate, automatic shutdown time, button lock time, and backlight automatic shutdown time according to their habits.

●11 types of pressure unit conversion, and the units that need to be converted can be set, and infrequently used units can be turned off. ●Added the function of restoring factory settings. If users make mistakes during the operation process, such as resetting to zero under pressure or entering the settings interface by mistake. This function can be used to restore the pressure gauge to the factory calibrated data and settings.

●To prevent touching other buttons, a lock key has been added. In use, you can press the lock button, and a lock pattern will appear on the display screen to lock other touch keys without affecting pressing and use. After use, it can be unlocked and turned off.
YW-100A SS316 Diaphragm Pressure Gauge With 4-20ma Output 1kg

YW-100A SS316 Diaphragm Pressure Gauge With 4-20ma Output 1kg
