    High Temperature Resistance Digital Display 4G Wireless Micro Pressure Sensor Gauge Pressure Transmitter

    Ask Lasest Price
    Price : CN¥2,695.40-3,637.70/pieces
    Supply Ability : 3000 Piece/Pieces per Month
    • Product Details
    • Company Profile

    High Temperature Resistance Digital Display 4G Wireless Micro Pressure Sensor Gauge Pressure Transmitter

    Product Description
    Pressure Transmitter uses HT series piezoresistive silicon oil-filled sensor as the signal measuring element. Signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. All the products through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance. Have strong anti-interference performance, can working in harsh environment conditions for long term.
    High Temperature Resistance Digital Display 4G Wireless Micro Pressure Sensor Gauge Pressure Transmitter
    High Temperature Resistance Digital Display 4G Wireless Micro Pressure Sensor Gauge Pressure Transmitter
    High Temperature Resistance Digital Display 4G Wireless Micro Pressure Sensor Gauge Pressure Transmitter
    Specification:
    Measurement Range
    -0.1….0~0.01...~100MPa
    Proof pressure
    ≤1.5X rated pressure or 110MPa which ever is less
    Pressure type
    Gauge, absolute ,sealed gauge
    Accuracy
    ±0.25%(Typical) ±0.5%(Max.)
    Long term stability
    ±0.2%F.S/year
    Operating Temperature Range
    -20℃~80℃
    Storage Temperature Range
    -40℃~120℃
    Power supply
    15~30VDC
    Output signal
    4~20mA 0~10/20mA 0/1~5VDC
    Pressure port
    M20×1.5 or customize
    material
    1Cr18Ni9Ti stainless steel
    Diaphragm material
    316L
    O-ring
    Fluororubber
    Electrical housing
    Cast aluminium alloy(2088housing)
    Insulation resistance
    100MΩ,100VDC
    Protection
    IP65
    Ordering Note
    1. Media must compatible with wetted part. 2. To ensure the products can working reliable, we suggest that customer install lightning protection device and make sure products & power are earthed. 3. Special requirement ,such as strong shock, moment vibration, strong electromagnetism, radio frequency interference ,please consult us. Warranty:Pressure transmitters have a limited one-year warranty to the original purchaser. We will replace or repair defective products free of charge. This warranty does not apply to any units have been modified, misused, neglected.
    High Temperature Resistance Digital Display 4G Wireless Micro Pressure Sensor Gauge Pressure Transmitter

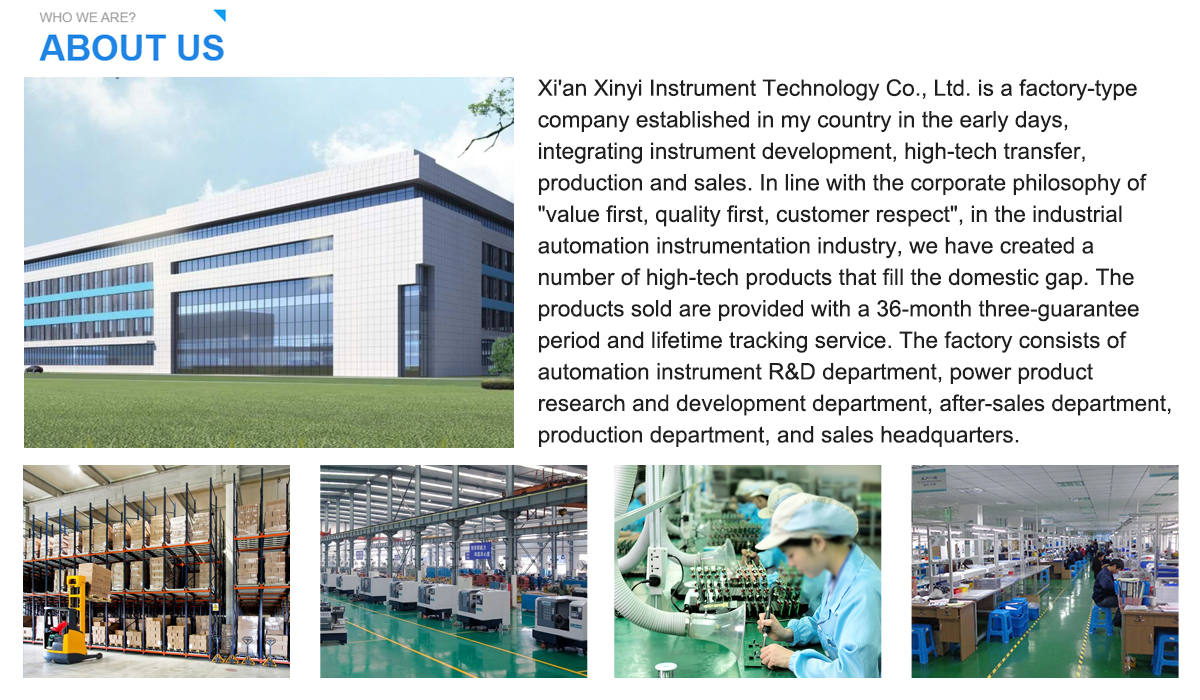

    Company Profile
    High Temperature Resistance Digital Display 4G Wireless Micro Pressure Sensor Gauge Pressure Transmitter
    High Temperature Resistance Digital Display 4G Wireless Micro Pressure Sensor Gauge Pressure Transmitter
    Certifications
    High Temperature Resistance Digital Display 4G Wireless Micro Pressure Sensor Gauge Pressure Transmitter
    FAQ
    1. WHO ARE WE? We are based in Shaanxi, China, start from 2017,sell to Domestic Market(25.00%),Northern Europe(15.00%),Mid East(15.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Southern Europe(5.00%),Western Europe(5.00%),South America(5.00%). There are total about 11-50 people in our office. 2. HOW CAN WE GUARANTEE QUALITY? Always a pre-production sample before mass production; Always final Inspection before shipment. 3.WHAT CAN YOU BUY FROM US? Pressure transmitter,Digital manometer,Ultrasonic level gauge,Pressure gauge verifier,Input level gauge. 4. WHY SHOULD YOU BUY FROM US NOT FROM OTHER SUPPLIERS? Xinyi technology has a strong r & D team, perfect service system, exquisite sales team. The company has always been adhering to the "price first, quality-oriented, user-oriented" purpose, truly achieve the "quality first, customer first" all the company's. 5. WHAT SERVICES CAN WE PROVIDE? Accepted Delivery Terms: FOB,CIF; Accepted Payment Currency:null; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash.
