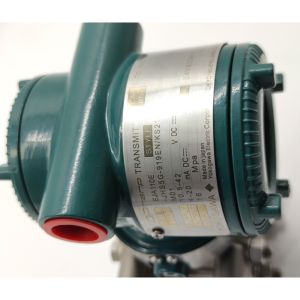

    EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter

    Product Description
    Pressure Transmitter EJA110E high-performance pressure transmitter using monocrystalline silicon resonant sensor technology, suitable for measuring the liquid, gas or steam flow, liquid level, density and pressure. EJA110E will measure differential pressure into 4 ~ 20 ma DC current signal output, can measure, display or remote monitoring static pressure, have fast response, remote set, since the diagnosis, etc.
    EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter
    EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter
    EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter
    EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter
    Specification:
    Model Number
    EJA110E
    The Environment Temperature
    -40-85℃
    The Process Temperature
    -40-120℃
    Environmental Humidity
    0-100%
    The Response Time
    90ms
    The Output Signal
    4-20mA+HART
    The Power Supply Voltage
    10.5-42V
    Accuracy
    +/-0.075%, +/-0.1%
    Wetted parts material
    SS316L, Hastelloy C, Tantalum
    Ambient temperature
    -40~85℃
    -20~65℃ (with LCD display, fluorine rubber O-ring)
    Protection grade
    IP67
    Process connection
    1/4NPT(F) , 7/16 female on the cover flanges or other optional
    Weight
    about 5 KG
    Ordering Note
    1. Media must compatible with wetted part. 2. To ensure the products can working reliable, we suggest that customer install lightning protection device and make sure products & power are earthed. 3. Special requirement ,such as strong shock, moment vibration, strong electromagnetism, radio frequency interference ,please consult us. Warranty:Pressure transmitters have a limited one-year warranty to the original purchaser. We will replace or repair defective products free of charge. This warranty does not apply to any units have been modified, misused, neglected.
    EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter
    Company Profile
    EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter
    EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter
    Certifications
    EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter
    FAQ
    1. WHO ARE WE? We are based in Shaanxi, China, start from 2017,sell to Domestic Market(25.00%),Northern Europe(15.00%),Mid East(15.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Southern Europe(5.00%),Western Europe(5.00%),South America(5.00%). There are total about 11-50 people in our office. 2. HOW CAN WE GUARANTEE QUALITY? Always a pre-production sample before mass production; Always final Inspection before shipment. 3.WHAT CAN YOU BUY FROM US? Pressure transmitter,Digital manometer,Ultrasonic level gauge,Pressure gauge verifier,Input level gauge. 4. WHY SHOULD YOU BUY FROM US NOT FROM OTHER SUPPLIERS? Xinyi technology has a strong r & D team, perfect service system, exquisite sales team. The company has always been adhering to the "price first, quality-oriented, user-oriented" purpose, truly achieve the "quality first, customer first" all the company's. 5. WHAT SERVICES CAN WE PROVIDE? Accepted Delivery Terms: FOB,CIF; Accepted Payment Currency:null; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash.
