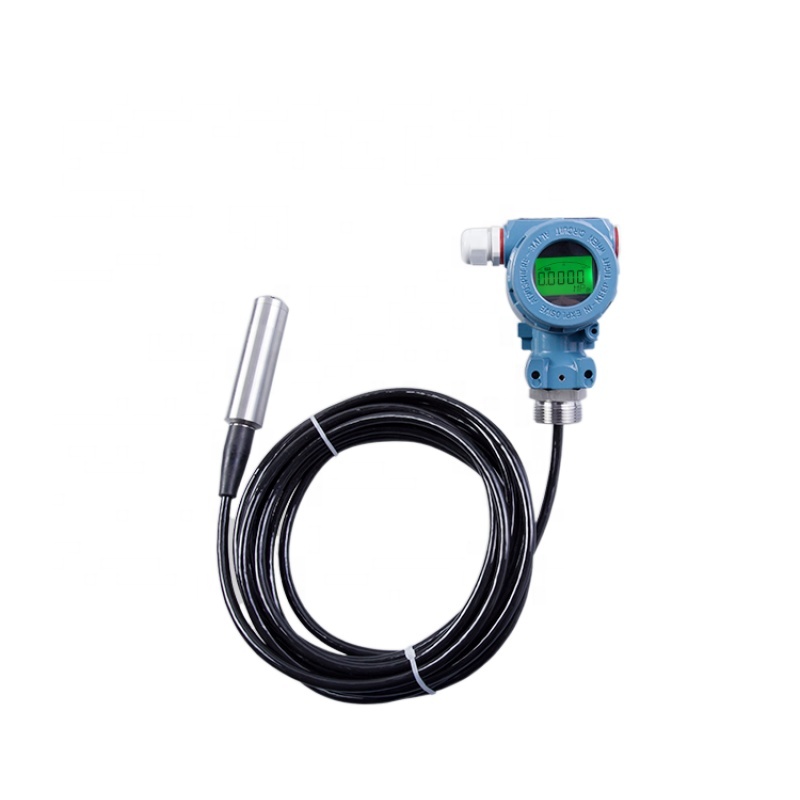

    IP68 Submersible Level Transmitter 4-20MA/RS485 YWKT-1A Stainless Steel

    4-20MA/RS485 YWKT-1A IP68 Submersible Level Transmitter Stainless Steel

    The input liquid level transmitter is composed of a fully sealed isolation membrane oil filled liquid level sensor and a special circuit for the instrument. It has the advantages of high measurement accuracy, good stability, long service life, convenient installation and so on. The unique process sealing structure is adopted, which has good anti leakage performance and reliable operation when immersed in liquid for a long time. According to the mathematical model relationship between the pressure, density and liquid level of the measured liquid, the liquid depth pressure proportional to the liquid level depth is measured through the liquid level sensor, and transformed into a standard 4 ~ 20mA current signal (or standard voltage signal) through the amplification circuit. Technical parameters: Measuring range: 0-200m Accuracy: ± 0.1 ± 0.2 ± 0.3 ± 0.5 Supply voltage; 24VDC (12-30VDC) Signal output: two wire system: 4-20madc 0-10madc three wire system: 1-5vdc 0-5vdc Temperature range: - 20-80 Medium: liquid without corrosion to 316 stainless steel Installation method: input type Explosion proof sign: Exia II CT5
    ItemValue
    GradeIndustrial
    Customized supportOEM, ODM
    Place of OriginChina
    Shaanxi
    Brand NameXINYIYB
    Model NumberYWKT-1A
    Product nameWater Level Sensor
    Accuracy0.25%FS
    Range0~200M Optional
