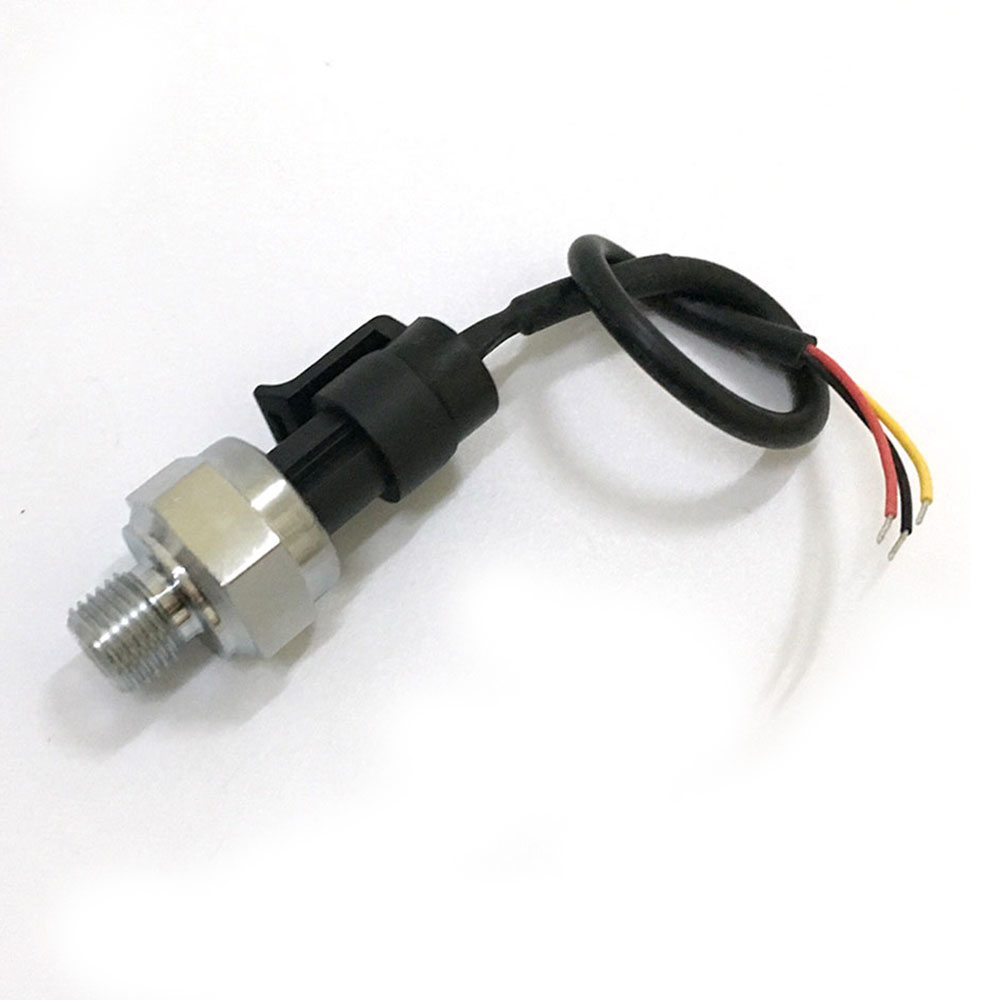

    G1/4 DC 5V 0-1.2 Mpa Pressure Transducer Sensor For Oil Fuel Gas Water

    Ask Lasest Price
    Price : Discuss
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 500pcs/month
    Delivery Time : 6-10 work days
    • Product Details
    • Company Profile

    G1/4 DC 5V 0-1.2 Mpa Pressure Transducer Sensor For Oil Fuel Gas Water

    G1/4 DC 5V For Oil Fuel Gas Water Air 0- 1.2 Mpa Pressure Sensor

    Product Description

    1 x dc 5v g1/4 pressure sensor pressure transducer 0-1.2 mpa 174 psi for oil gas water

    1. Suitable for wall oven, gas oven, gas storage, etc. all kinds of hydraulic pneumatic pressure measurement
    2. Suitable for civil use batch of products
    3. Static accuracy: plus or minus 1.0% fs
    4. Pressure range 0-1.2 mpa (can be customized according to customer's requirements)
    5. Wide temperature compensation range
    6. Medium for non-corrosive gas, water, oil, etc.
    Note: not compatible with cars according to user experience, caused the working temperature. the range is 0-85 degrees celsius, please note! Thanks!

    Specifications:

    Working voltage: 5vdc Output voltage: 0.5-4.5vdc Sensor material: carbon steel alloy Working current: ≤ 10 ma Working pressure range: 0-1.2 mpa The highest pressure: 2.4 mpa Cable length: 19cm Destroy pressure: 3.0 mpa Work temperature. Range: 0-85 degrees Storage temperature range: 0-100 degrees Measurement error: ± 1.5% fso Temperature range error: ± 3.5% fso Response time: ≤ 2.0 ms Lifecycle: 500,000 pcs Application: measurement of non-corrosive gas liquid

    Features:

    Easy removal, carbon steel connection more firmly. Stainless steel is durable, waterproof sealed line, imported chips. Wiring: red, black-, yellow output Typical application: non-corrosive liquid pressure lifting
    ItemValue
    Warranty2 years
    Customized supportOEM
    Place of OriginChina Shaanxi
    Brand NameXINYIYB
    Model NumberDC-1.2
    Accuracy1.0% FS
    Output signal0-5VDC
    Pressure range0-1.2Mpa
    working pressureless 10Mpa
