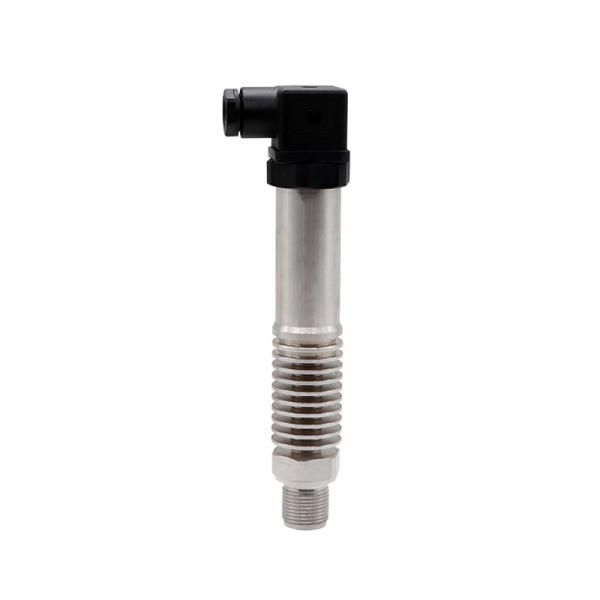

    High Temperature Pressure Sensor Transmitter YW-130H Rod Shaped

    Ask Lasest Price
    Price : Discuss
    Brand Name : XINYIYB
    Model Number : YW-130H
    Certification : CE,Exiall CT6 Ga,ATEX.RoHS
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 1000pcs/month
    Delivery Time : 6-10 work days
    • Product Details
    • Company Profile

    High Temperature Pressure Sensor Transmitter YW-130H Rod Shaped

    YW-130H High-Quality Rod-Shaped High-Temperature Pressure Sensor
    YW-100G series pressure transmiter pressure-sensitive core adopts high-performance silicon piezoresistivepressure filling core. The intenal ASIC, converts the sensor millivolt signal into standard voltage. current orfrequency signal., which can be directly connected with a computer interface card, control instrument, intelligentinstrument or PLC. The current output mode can be used for distance transmission.
    It has a small volume. lightweight, all stainless steel sealing structure and can work in a corrosive environment.The product is easy to install and has high anti-vibration and anti-impact performance. It is widely used in processcontrol. aviation, aerospace, automobile, medical equipment, HVAC and other fields.
    range0~1 bar...2000 bar optional
    Output4~20mA ,0~5V/1~5V10.5~4.5V
    Power supply12VDC~30VDC
    Accuracy0.5%FS; 1%FS optional
    Pressure portM20X1.5 male or by customized
    Electronic PortDIN Hirschman or directly cable lP67
    Working temperature-10°C~+125°C,-60°C~+200°C
    Temp Compensation0~85°C;0°C~100°C(customized)
    Zero Temp Drift0.03%FS/C(≤100kPa),0.02%FS/°C(>100kPa)
    Overoad200%FS
    Burst Overload400%FS
    Cooling devicewith cooling device for max 125°C or 200°C
    CertificateCE,Exiall CT6 Ga,ATEX.RoHS
