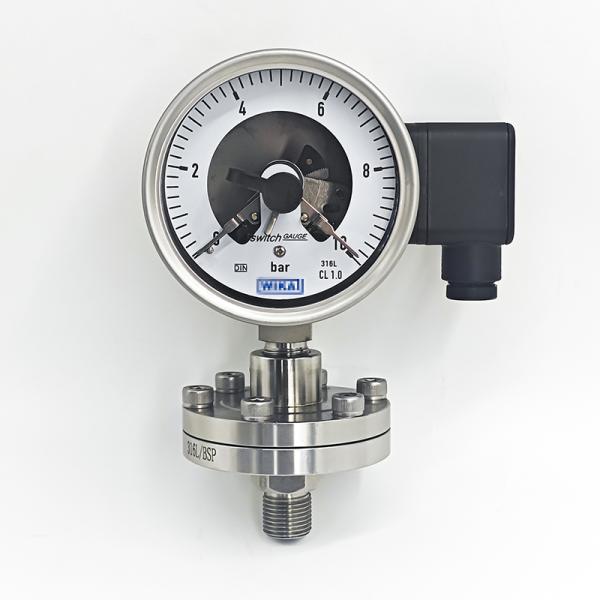

PGT23.100 Stainless Steel Manometer Diaphragm Seal Pressure Gauge With 1.0%FS Accuracy And IP65 Ingress Protection

Products Description

Diaphragm Pressure Gauge

Bourdon tube pressure gauge with switch contacts For the process industry, NS 100 and 160 Models PGS23.100 and PGS23.160The pressure gauge is manufactured in accordance with DIN 16085 and fulfils all requirements of the relevant standards (EN 837-1) and regulations for the on-site display of the working pressure of pressure vessels. As switch contacts, magnetic snap-action contacts, reed switches, inductive contacts and electronic contacts are available. Inductive contacts can be used in hazardous areas. For triggering programmable logic controllers (PLC), electronic contacts and reed switches can be used.
Special features
Up to 4 switch contacts per instrument
■ Also available with case filling for high dynamic pressure loads or vibrations
■ Instruments with inductive contacts for use in hazardous areas
■ Instruments with contacts for PLC applications
■ Instruments optionally available in safety version S3 per EN 837
Applications
Control and regulation of processes
■ Monitoring of plants and switching of circuits
■ For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
■ Chemical industry, petrochemical industry, power plants, mining, on-/offshore, environmental technology, machine building andgeneral plant construction

Specification

Product Name	Diaphragm Pressure Gauge
Models	PGS23.100
Accuracy class	1.0%FS
Scale ranges	0 ... 0.6 bar [0 ... 8.7 psi] to 0 ... 1,600 bar [0 ... 23,206 psi] other units (e.g. psi, kPa) available
Scale	Single scale Option: Dual scale
Process connection	■ G ½ B ■ G ¼ B ■ G ⅜ B ■ ½ NPT ■ M20 x 1.5 others on request
Medium temperature	+200 °C [+392 °F] max.
Ambient temperature	-20 ... +60 °C [-4 ... 140 °F]
Ingress protection	IP65 Option: IP66
