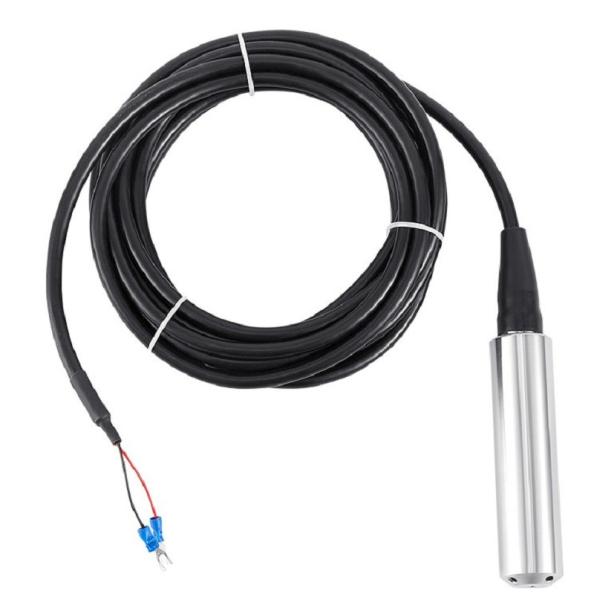

Economical Liquid Level Transmitter 4-20mA Level Sensors And Transmitters YWKT-1A Series

Economical Level Sensors And Transmitters YWKT-1A Series, 4-20mA Output, OEM Services

Overview

YWKT-1A series of general-purpose input level transmitter uses high-performance diffusion of silicon pressure sensor as a measurement element, it measures the hydrostatic pressure which is proportional to the depth of the liquid and Convert to standard current or voltage by signal processing circuit.

The product is suitable for petrochemical, metallurgical, power, pharmaceutical, water supply and drainage systems and other industries of various media level measurement.

●Features

n SS 316L , IP68

n More than 2 times overpressure, when range is less than 5 meter, it can up to 5 times overpressure.

n Anti-interference, anti-lightning design

n High precision, high stability, high reliability.

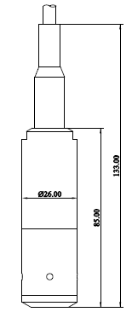

●Outline construction:(Unit: mm)

●Specification:

Pressure parameter
Range	0 mH₂O～1 mH₂O…200 mH₂O
Overload	2 times FS,5 times FS when less than 5 mmH₂O
Electrical parameter
Output type	Current type		Voltage type
Power supply	9~30V DC		12~30V DC
Output Signal	4mA～20mA DC(2 wire)		0/1V~5/10V DC (3 wire)
Load resistance	≤(U-9)/0.02Ω(2 wire)		≥10k (3 wire)
Structural parameter
Housing	SS
Sensor	SS 316L
Sealed-ring	Viton
Cable	∅7.5mm Polyethylene special cable
Protection class	IP68
Ambient parameter
Media applicability	Fluid which has no corrosion to Stainless steel 316L and viton
Compensation temperature	0℃～70℃
medium temperature	-20℃～75℃
Storage temperature	-40℃～125℃
Performance index
Accuracy	±0.25％FS(Standard)	±0.5％FS(Max.)
Zero temperature coefficient	±0.05％FS/℃(≤5 mH₂O)	±0.02％FS/℃(＞5 mH₂O)
Full temperature coefficient	±0.05％FS/℃(≤5 mH₂O)	±0.05％FS/℃(＞5 mH₂O)
Long term stability	±0.3%FS/year(Max.)

●Electrical connection

Definition of terminal:

Wire	2 wire	3 wire
Black	+V	+V
Red	+OUT	+OUT
White	N/A	Common port: GND

Electrical Connection for transmitter output 2-wire 4～20mAD

Electrical Connection for transmitter 3-wire 0/1～5VDC

●Order information

YWKT-1A	series universal input level transmitter
	Range	Measurement range 0 mH2O～1 mH2O┅200 mH2O
	[0-X mH2O] L	X: measuring level,L: length of cable. Suggestions: L-X=(1～2)m
		Code		Signal output
		E		Output 4mA～20mA DC
		F		1V～5V DC
		J		0V～10V DC
		V		0V～10V DC
			Code	Material of construction
				Isolation diaphragm		Port	Housing
			22	SS 316L		SS	SS
			24	SS 316L		SS 316L	SS 316L
				Code	Functions
				Y	Terminal box
YWKT-1A -［0～5mH2O］6 – E – 22 –Y the whole Spec.

Order note:

1:Please note that the measured medium should be in contact with the product part of the contact medium.

2:The basic range of the absolute pressure product is a minimum of 100 kPa.

3: In order to ensure product reliability, we recommend users to install anti-lightning protection devices in the field and ensure reliable grounding of products and power supply.

4:We can provide special design and manufacturing for special application, welcome to consult the customer negotiations. Tel: 029-81106070 E-mail: mollie@xinyiyb.com(Technical support); molliexinyiyb.com (Sales support).We will provide you with detailed technical support until you are satisfied.
